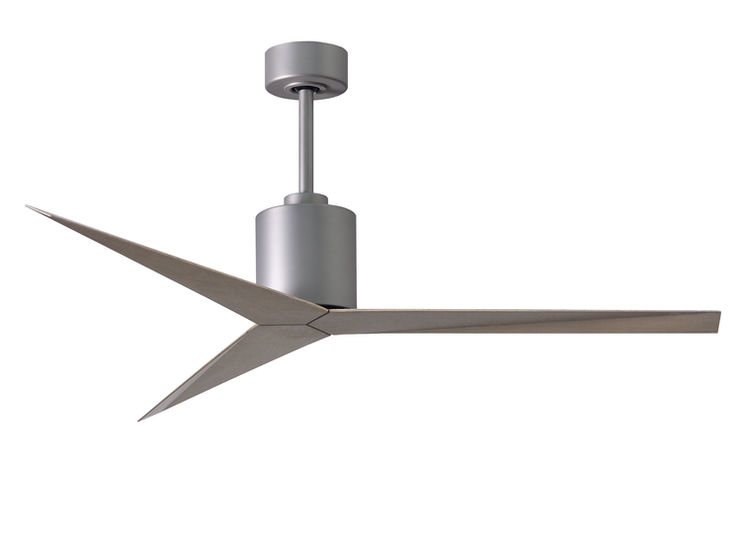

Eliza ceiling fan ing gloss white with walnut blades

ELIZA

Designed by Chicago architect Stephen Katz in 2013, the wet location Eliza blends a beautiful technically derived form with superior function and movement. The unique blade shape is designed to maximize air movement at the outer edge of the blade. The result is more efficient air velocity rings, less blade drag and greater motor optimization. Equally important is Eliza’s stationary visual statement which combines modern utility with minimalist geometry. Constructed of cast aluminum and heavy stamped steel, the Eliza has a limited lifetime warranty.

Matthews Fan Company

FINISHES & OPTIONS

Eliza Ceiling Fan in Brushed Nickel with Barn Wood Blades

Finishes

Brushed Nickel
Gloss White
Matte Black

Blades

Barn Wood
Brushed Nickel
Gloss White
Gray Ash
Matte Black
Old Oak
Walnut

Eliza Specifications

Fan Diameter56 inches / 142 cm
Blade MaterialABS
Fan Weight17 lbs
Voltage110 or 220
Motor TypeDC
Downrods Lengths. Field cuttable.inches: 5, 10, 20, 30, 48, 72 centimeters: 13, 25, 51, 76, 122, 183
Downrod Diameter1 inch
Overall Drop12 inches / 30 cm + downrod length
EnvironmentWet locations for all finishes
All weather blade system.
Neither coastal, saltwater nor chlorine compatible
AmbienceSilent
Safety CertificationETL / CETL
WarrantyLimited Lifetime
Prop 65
WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or reproductive harm.
For more information, click on the link to go to www.P65Warnings.ca.gov
Prop 65
RPM (Low / High)55 / 172
CFM (Low / High)1633 / 5439
Watts (High)33.13
CFM/Watt (High)167
Blade Pitch27°
One downrod of 10 inches / 25 cm
Vaulted ceiling canopy for up to 30°
Wireless Remote
Black 6-speed RF remote control with reverse
6-speed wall control in white
6-speed wall control in white
NOTE: Only compatible with included controllers.
Eliza Technical Diagram
Technical diagram for Eliza ceiling fan by Matthews Fan Company

DOWNLOADS
