Ar Ruthiane ceiling fan in black

AR RUTHIANE

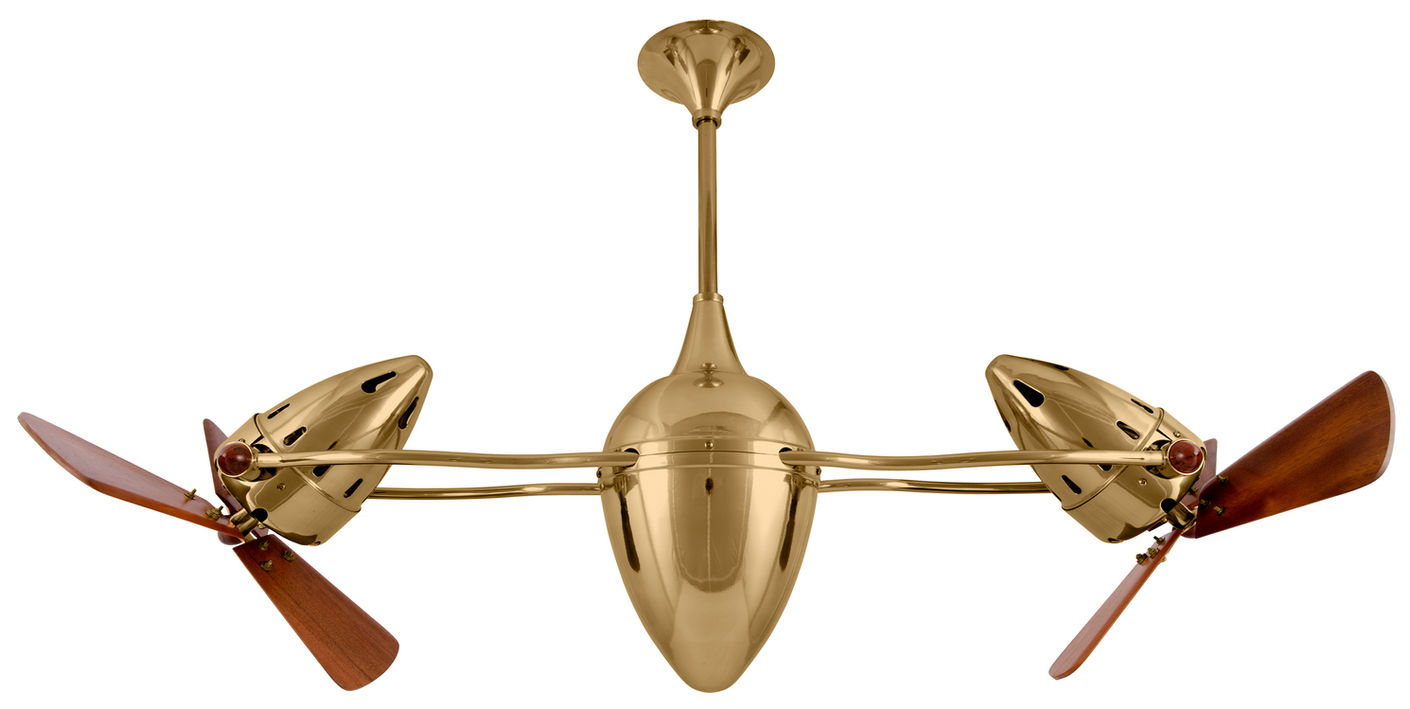

The Ar Ruthiane’s unique hourglass support arms grasp bullet-shaped motor housings which rotate 360° about its teardrop center. The fan heads can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed. Matthews 360° rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans. Constructed of cast aluminum, heavy spun and stamped steel, the Ar Ruthiane carries a limited lifetime warranty.

Ar Ruthiane ceiling fan in living room

FINISHES & OPTIONS

Fan Heads

Metal
Solid Mahogany Wood

Finishes

Black
Bronzette
Brushed Nickel

Special Finishes

Brushed Brass
Brushed Copper
Polished Brass
Polished Chrome
Polished Copper
Polished Chrome - Damp
Brushed Nickel - Damp
Gloss White
Black Nickel
Agua Marinha
Ametista
Esmeralda
Ouro
Rubi
Safira

Ar Ruthiane Specifications

loader-icon
Fan Weight21 lbs
Voltage110 or 220
Motor TypeAC
RotationYes
Downrods Lengths. Field cuttable.inches: 5, 10, 20, 30, 48, 72 centimeters: 13, 25, 51, 76, 122, 183
Downrod Diameter.75 inch
Overall Drop12 inches / 30 cm + downrod length
EnvironmentDamp locations for all finishes. Neither coastal, saltwater nor chlorine compatible
AmbienceSoothing White Noise
Safety CertificationUL / CUL
WarrantyLimited Lifetime
Fan Head OptionsSolid WoodMetal with Guard
Fan Diameter48 inches / 122 cm46 inches / 117 cm
Fan Blade Diameter16 inches / 41 cm13 inches / 33 cm
Guard OptionsNo Cage OptionSafety Cage or Decorative Cage
RPM (Low / High)723 / 1308591 / 1075
CFM (Low / High)2644 / 47241215 / 2371
Watts (High)96.94103.53
CFM/Watt (High)48.7322.90
Blade Pitch19°31°
One downrod of 10 inches / 25 cm
Flat ceiling canopy
3-Speed Wall Remote
White Decora-style, 3-speed wall control
Optional Equipment:
29° vaulted ceiling mount and canopy
Ar Ruthiane Technical Diagram
Ar Ruthiane Technical Diagram

DOWNLOADS
