DIANE
The Diane directional fan head provides maximum airflow with a sweeping 90° forward and reverse oscillation. The Diane Metal Blade Energy Label can be hung in small, awkward spaces or in front of HVAC ducts to improve the efficiency of heating, ventilation or air conditioning of any space. Constructed of cast aluminum and heavy stamped steel, the Diane carries a limited lifetime warranty.
FINISHES & OPTIONS
Fan Heads
Metal
Wood
Finishes
Brushed Nickel
Matte Black
Polished Chrome
Textured Bronze
Blades
Barn Wood
Mahogany
Matte Black
Diane Specifications
| Fan Weight | 12 lbs |
| Voltage | 110 or 220 |
| Motor Type | AC |
| Rotation | Yes |
| Downrods Lengths. Field cuttable. | inches: 5, 10, 20, 30, 48, 72 centimeters: 13, 25, 51, 76, 122, 183 |
| Downrod Diameter | 1 inch |
| Overall Drop | Metal Blades: 14 inches / 36 cm + downrod length Wood Blades: 12 inches / 30 cm + downrod length |
| Environment | Damp locations for all finishes. Neither coastal, saltwater nor chlorine compatible |
| Ambience | Soothing White Noise |
| Safety Certification | ETL / CETL |
| Warranty | Limited Lifetime |

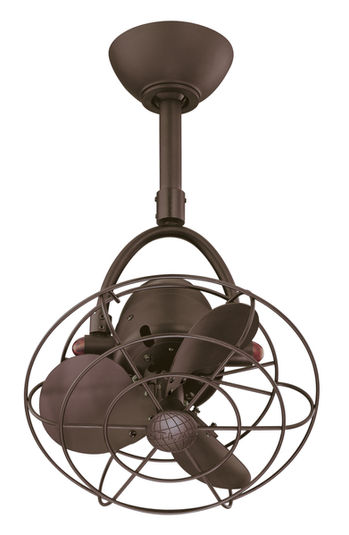

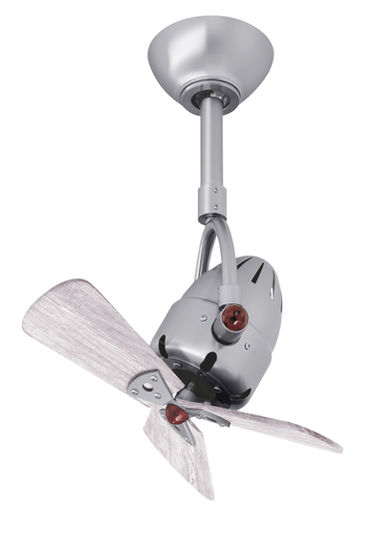

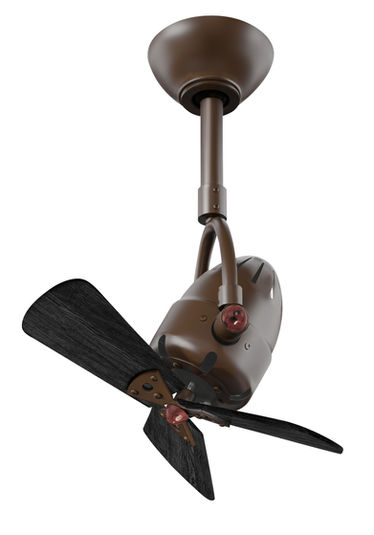

| Fan Head Options | Solid Wood | Metal with Guard |
| Fan Diameter | 16 inches / 41 cm | 13 inches / 33 cm |
| Fan Blade Diameter | 16 inches / 41 cm | 13 inches / 33 cm |
| Guard Options | No Cage Option | Safety Cage or Decorative Cage |
| RPM (Low / High) | 865 / 1325 | 900 / 1377 |
| CFM (Low / High) | 1441 / 2152 | 1068 / 1345 |
| Watts (High) | 51.37 | 46.14 31 |
| CFM/Watt (High) | 44 | 31 |
| Blade Pitch | 19° | 31° |
| One downrod of 10 inches / 25 cm |
| Vaulted ceiling canopy for up to 29° |
Black 3-speed RF remote control with reverse |
| Accessory: Decora-style, 3-speed, non-dimmable wall control  non-dimmable wall control |
